Product Display

LCD DISPLAY

Display has indicator lights showing the operating status of each function, namely power, stirring, heating, dehumidification, and exhaust. All functions are automatic. The temperature and humidity of the composting chamber are displayed on the left and right sides.

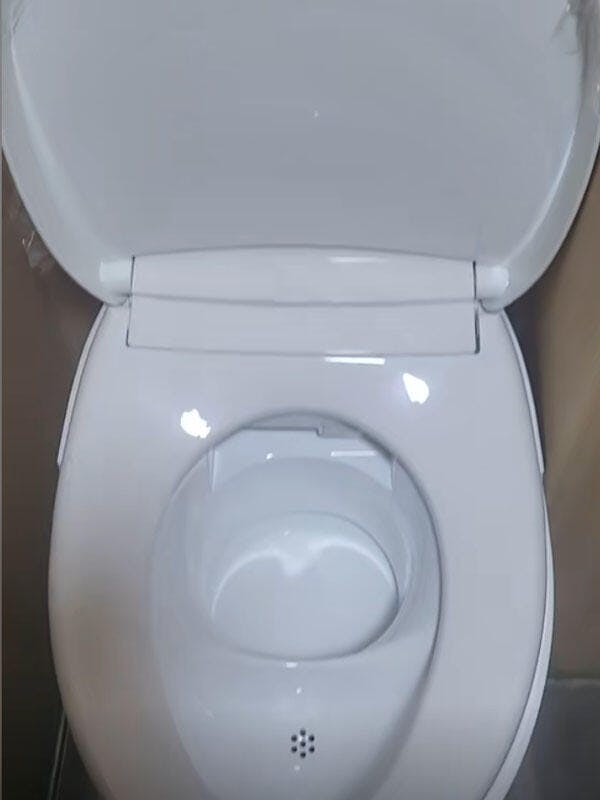

MULTIFUNCTIONAL TRAP DOOR

The trapdoor can block the line of sight, improving the user experience.And there are drain holes on the trapdoor, so liquids can also flow through the trapdoor. Therefore, men can urinate standing up when using the toilet, and women don't have to strain to aim. If the inside wall of the toilet is accidentally stained, it can be cleaned directly with water, which is very convenient.

MANUAL HANDLE

This is the activity handle for controlling the trapdoor. When you use the toilet, turn the handle to open the trapdoor, and turn it again to close it after use.

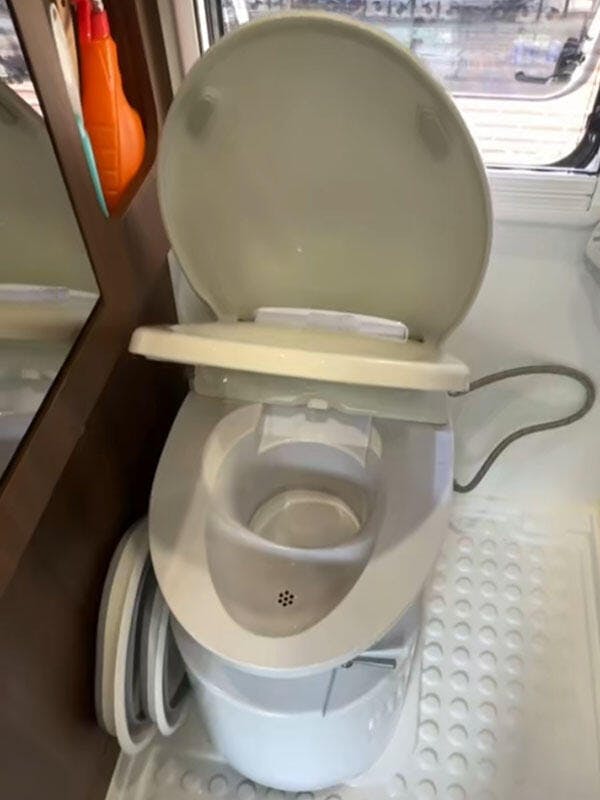

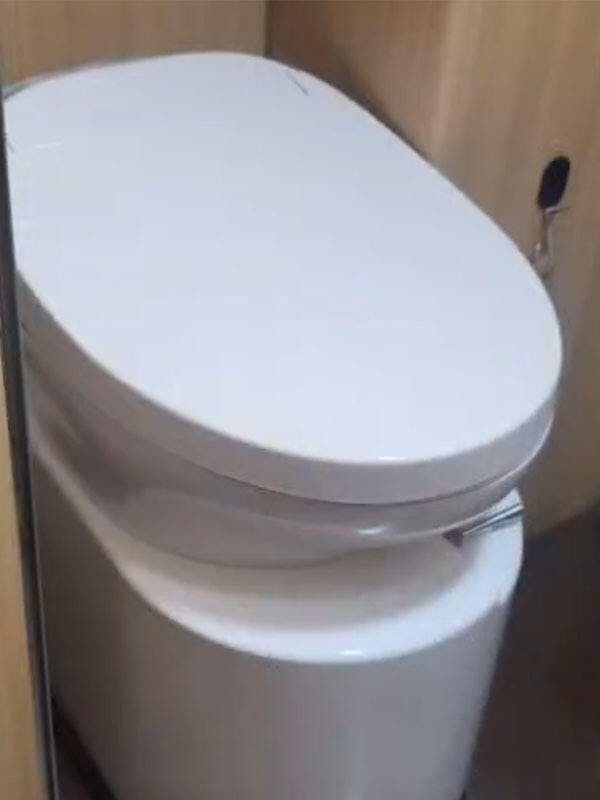

ROTATABLE TOILET HEAD

Due to the limited space inside most RV, we designed a rotatable toilet head. This design adapts to the small dimensions and makes better use of the space inside the RV. For example, if a person normally cannot sit down in the bathroom, rotating the toilet head to an oblique angle allows them to sit down on the toilet

URINARY TUBE+EXHAUST PIPE

The toilet base is equipped with a urine pipe and a vent pipe. The liquid in the urine funnel and trap door will be discharged through the urine pipe, and the air in the composting chamber will be discharged through the vent pipe. During installation, we need to drill two corresponding holes in the RV floor to extend these two pipes. The urine pipe can be connected to a gray water tank or a separate bucket as needed.

PULL-OUT COMPOSTING CONTAINER

The composting chamber is pull-out, easy to remove, and very convenient for changing wood chips. Usually, we need to open a hatch on the corresponding RV wall panel for the composting chamber, so users can easily take out the composting chamber from outside the RV.

Five Automatic Functions of the Toilet

1.Automatic constant temperature function

The toilet's interior has a temperature sensor and heating plate, both automatically controlled by a program, eliminating the need for manual operation. The temperature sensor automatically activates the heating function when the toilet temperature drops below 5 degrees Celsius, and stops heating when it reaches 10 degrees Celsius. This suitable temperature promotes the growth and activity of biological organisms.

This is a function that other composting toilets do not have, allowing you to use the toilet normally even in winter.

Toilets are equipped with exhaust fans and sensors. The sensing device automatically detects the composting chamber environment. When excessive humidity is detected inside the toilet, the toilet automatically starts heating to remove moisture. This function maintains the optimal activity of the biological bacteria, accelerating the decomposition of feces.

After use, close the trap door, and the agitating shaft automatically stirs for 2 minutes. When the toilet is not in use, the agitating shaft automatically stirs at intervals to prevent wood chips from clumping, improving bacterial decomposition efficiency and wood chip ventilation performance.

When using the toilet, the exhaust fan automatically starts, ensuring you won't smell any odors. When not using the toilet, the exhaust fan automatically exhausts to ensure the circulation of air inside the toilet, providing a suitable environment for biological organisms.

When the trap door is opened, if the agitator is running, the agitator will automatically stop to prevent injury. The agitator is always stopped when people use the toilet.
